HUB (MRV336, Hub75B, SMHub40-2.0, DH418, DH7508-S, AXS_HUB75E_A0, APL-AXS12-HUB75-1.0, TC-RECHUB-EMC E352708)

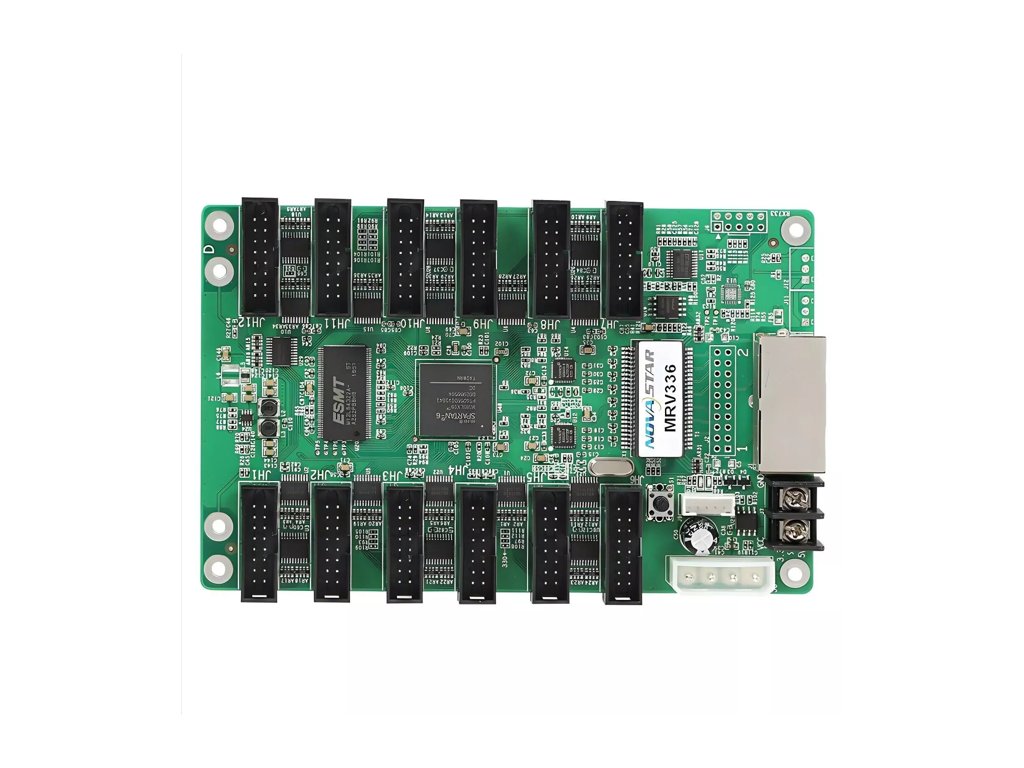

MRV336
High loading capacity: The MRV336 receiving card, developed by NovaStar, can load up to 256×226 pixels per card, making it suitable for high-resolution LED displays.
Enhanced display quality: Supports brightness and color calibration at the pixel level, significantly improving visual performance and overall user experience.
Stable communication: The card features 12 standard HUB75E connectors, ensuring reliable communication with LED modules and high stability.
Efficient data processing: The card supports up to 24 groups of parallel RGB data, allowing efficient and smooth data transmission for LED displays.
Electromagnetic compatibility: Designed to comply with EMC standards, the MRV336 card offers improved electromagnetic compatibility, making it ideal for various on-site applications.
Hub75B
Purpose of HUB75: HUB75 is a breakout board for LED displays that supports 1/32 scanning and is designed for indoor LED module use.
Compability: The card is compatible with Linsn LED receiving cards for signal reception from LED displays.
Function: It is responsible for assigning the correct signals from the receiving card to the LED module.
HUB75 Model Selection: The HUB75 model is selected based on the pin configuration of the LED module to ensure proper signal assignment.
Cable Usage: A flat cable (IDE) is used for connection, and if the pin configuration differs, an adapter cable can be used.
DH418
High capacity and flexibility: Supports resolutions up to 256×256 pixels, parallel output for up to 16 groups of RGB signals, and serial output for 64 data groups, ensuring top-quality display performance.
Reliability and backup: Includes hot backup options such as loop backup, dual-card or dual-power backup, and dual backup of display parameters, minimizing downtime and increasing operational stability.
Advanced management features: Enables module management via flash memory, supports intelligent modules, and detects pixel-level errors for easy maintenance and high-quality imaging.
Monitoring and calibration: Provides temperature, voltage, and communication status monitoring, pixel-level brightness and color calibration, and pre-stored image settings for optimal performance and convenience.
Certification and compliance: Meets EMC, RoHS, and CE-EMC Class B standards, ensuring electromagnetic compatibility, safety, and environmental friendliness.
DH7508-S
High processing capacity: The DH7508-S receiving card supports a maximum load of up to 256 × 256 pixels, making it suitable for larger LED displays.
Advanced display features: The card offers brightness correction, quick line setup, 3D support, and independent gamma settings for RGB, significantly improving display quality.
Communication and stability: Features 8 standard HUB75E interfaces, ensuring high stability and reliable connections.
Flexible data options: Supports up to 16 sets of RGB data channels, enabling efficient processing and data transmission.
Suitable for various environments: Designed for different conditions, with brightness adjustment capabilities based on environmental needs.
Input voltage: DC 3,3V-5,5V,
Constant current: 0,5A
Rated power: 2,5W
Operating temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non-condensing
Storage temperature: –25℃ – + 125 ℃
Size: 18,4 mm x 145,7 mm x 91,5 mm
Weight: 102 g

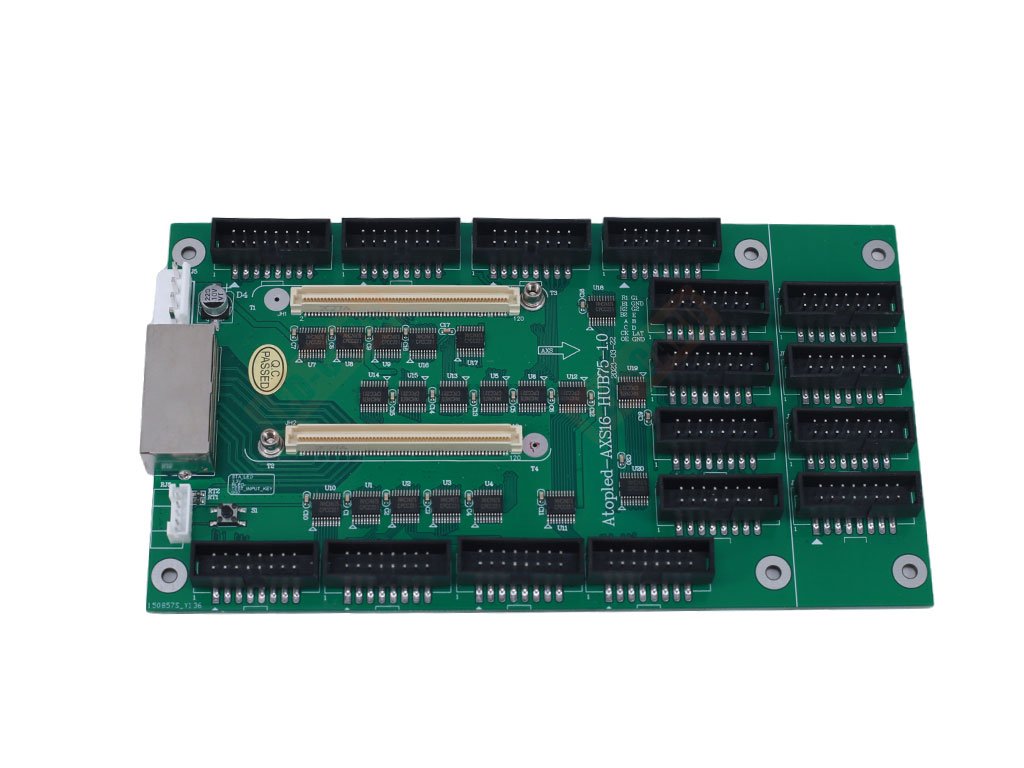

AXS_HUB75E_A0
Universal connection: The AXS card allows interconnection between Novastar (A5, A7, A10) and Colorlight (K5, K8, K9, K10) cards with LED modules, enhancing compatibility and ease of use.
Multiple HUB75 ports: Equipped with 16 HUB75 ports, providing expanded connectivity options and easy LED display integration.
Efficient data processing: The card’s 16-pin interface, divided into 24 RGB signal groups, ensures efficient processing and signal transmission.
High compatibility: With a standard size and mounting holes, the card is easy to use and highly compatible with Novastar and Colorlight products.
Flexible scanning: Supports scanning modes from 1 to 32, ensuring flexibility when configuring LED modules.
APL-AXS12-HUB75-1.0
Universal compatibility: The AXS card supports LED card connections for Novastar (A5, A7, A10) and Colorlight (K5, K8, K9, K10) and is compatible with a wide range of LED modules.
HUB75 interface: The card has 12 HUB75 ports, allowing easy connection to LED modules and standardized mounting due to its consistent size and mounting holes.
Extensive data processing capabilities: The AXS16-HUB75 interface has 16 pins divided into 24 RGB data groups, ensuring efficient signal processing and transmission.
Network system integration: The AXS card enables multiple LED modules to be integrated into a single network system, simplifying LED display management and configuration.
Scanning support: Supports various scanning modes from 1 to 32, providing flexibility for configuring LED modules with different requirements.
TC-RECHUB-EMC E352708
