Complete Certified UEFA System: 250m with Full Equipment – Rental System
Basic Parameters:
250m
SW LTM UEFA

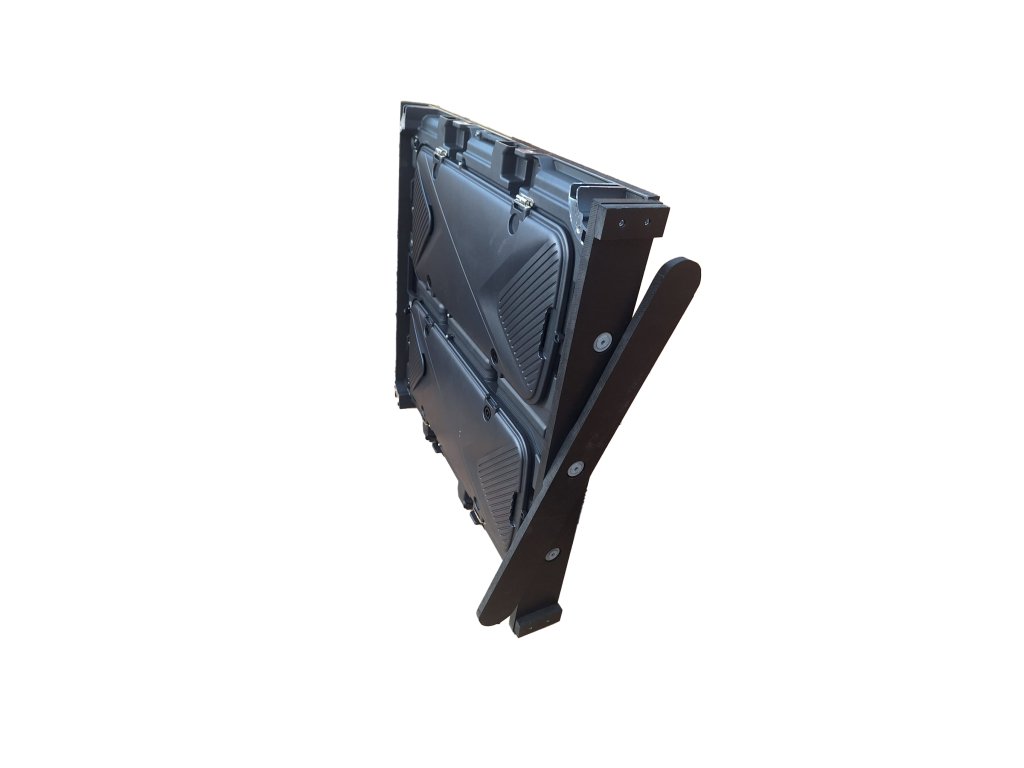

Stable construction with legs
2x pass-through gates with hinges
Optical cables
Optical converter
Electrical distribution boxes 32A
Tent
Rain covers
Perimeter:
LED Configuration:
3-in-1 SMD
Screen Height:
Up to 100 cm
Total Length:
248m
Pixel Pitch:
P10
Horizontal Viewing Angle:
Full goal-line visibility from cameras at 16m and 5m
Refresh Rate:
At least 3800 Hz (UEL/UECL/UWCL standard)
Gray Scale:
At least 18+ bits, low latency
Brightness:
At least 5500 Nits
The default graphic (automatic switching function) is installed and enabled (set to static shared rotation) in case of a complete data connection loss with the server.
2/ Media Server:
Individual control of brightness, gamma, and colors of each pixel/module/LED panel
Transmission speeds (Mbit/s): at least 24,000
The system is displayed and controlled as a single screen using control software.
Data Channels: Control signal connection via two redundant power points; configured data ring loop.
Production/Standards/Data:
European certifications: EMC protection according to EU standards; CE, ROHS, EN certification.
External driver software overlay possible with data redundancy.
Default graphics can be stored in panels in case of complete data connection loss (pre-stored picture).
The system returns to full operation in less than 25 seconds after a power failure.
Weather protection: IP 65 (front) and IP 54 (rear).
Adjustable legs / height from the floor / protected legs / no gap under the system.
Rubber front shaders and rubber top covers (impact protection) to protect players from injury.
Full functionality LED panel replacement possible during operation.
Access gate mechanism at multiple locations (if needed) without signal interruption – (exit gate).
4x emergency gate
2x wing gate
Safety/emergency exit gates available at multiple locations, with the option to interrupt the signal in case of emergency use.
Electrical System:
European voltage system (220-240V / 380-415V, 50Hz).
Standard CEE power connectors for 400V, alternative power lock connectors in the main power distribution.
Professional power connectors such as Neutrik powerCon TRUE1 with IP 65 protection.
Heavy-duty, highly flexible rubber cabling for outdoor use (cable type: H07RN-F). Titanex.
All unprotected cabling (including data cables) must be shielded.
Power loss must be limited to a single panel – failure must not affect other panels.
Only one circuit breaker (16 A or less) including one RCD 30mA per LED panel.
Adjustable residual current device 300mA on end circuits 125A/63A 3P + N including surge protection.
EMC protection according to the highest EU standards and regulations – CE low-voltage European certification is sufficient.
CONTENT CONTROL – DATA INTERFACE
Configured data ring loop; if one connection fails, an automatic switch activates the data source from the opposite section.
Neutrik Ethercon data connectors or an equivalent brand with RJ-45 IP 65 protection.
Default graphic (automatic switching function) installed and enabled (set to static shared rotation) in case of complete data connection loss.
Two sending cards (one backup) with full data redundancy and time-synchronized content.
Playlist generation in less than 1 minute from any data file (Excel).
