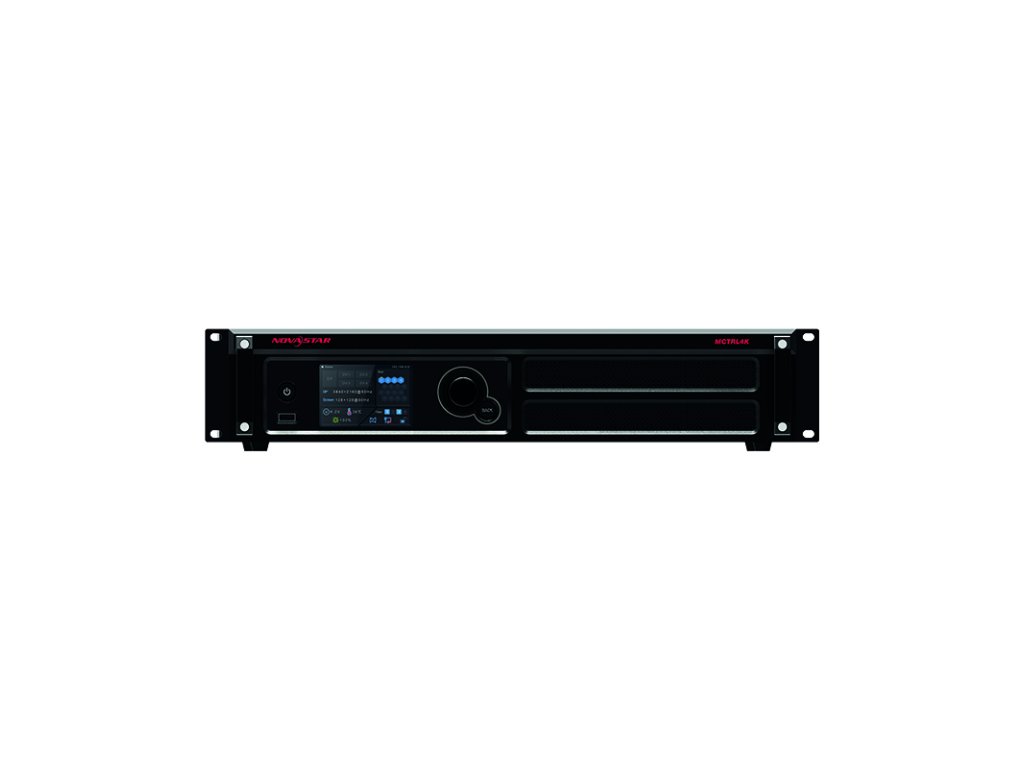

NovaStar MCTRL 4K
Dual Controllers in One Unit:
Multi-card mode allows MCTRL4K to be divided into two independent controllers, each playing signals from two separate input sources.
Additionally, it supports HDR when used with A8 or A10 (160203-1) devices, enhancing image quality.
MCTRL4K and CVT4K – Optimal Solution:
To bridge long distances between the controller and LED display, combine MCTRL4K with CVT4K-S/M, enabling a maximum range of 300 meters or 10 kilometers.

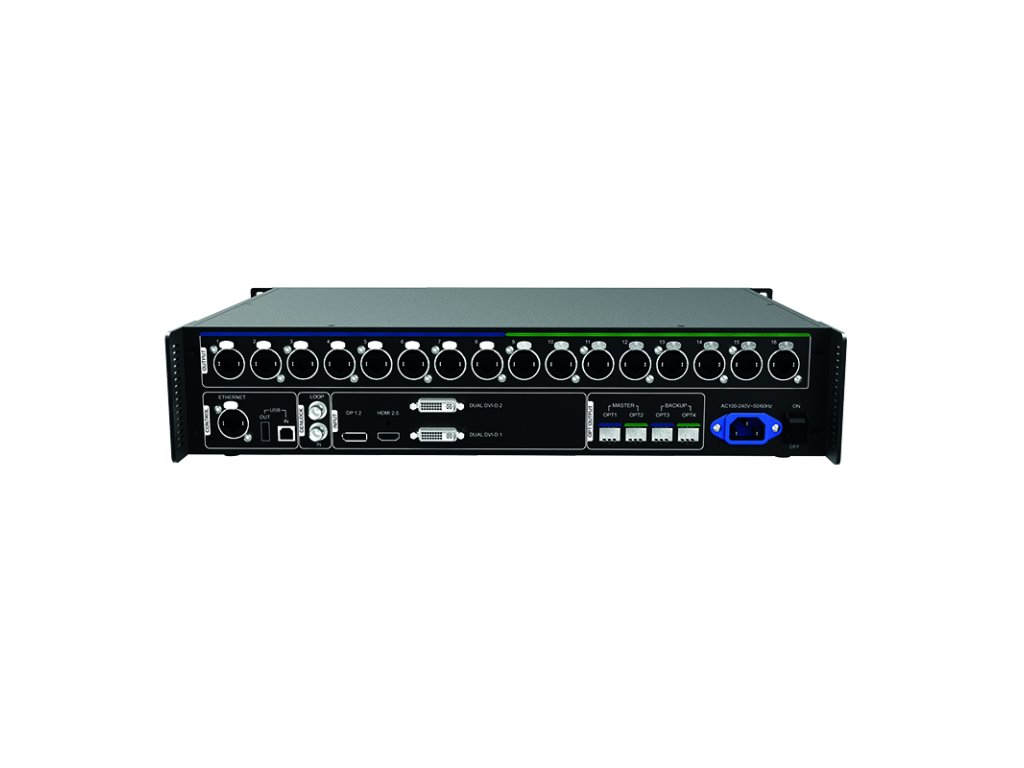

Inputs:
1x DP 1.2
1x HDMI 2.02x Dual-Link DVI
Outputs:
16x LED output (RJ45)
4x OPT output (2x main, 2x backup)
Additional features:
Supports HDR10
8/10/12-bit color depth
GENLOCK In/Loop
Cascading via USB
Control via USB or LAN (including Web Interface)
Additional parameters
| Category: | Video controllers |
|---|---|
| Napájení:: | 100-240V AC 50/60Hz |
| Spotřeba energie:: | 30W |
| ? Rozměry:: | 482,6 x 372 x 96mm |
| Hmotnost:: | 4,6kg |
