MCTRL660 Pro

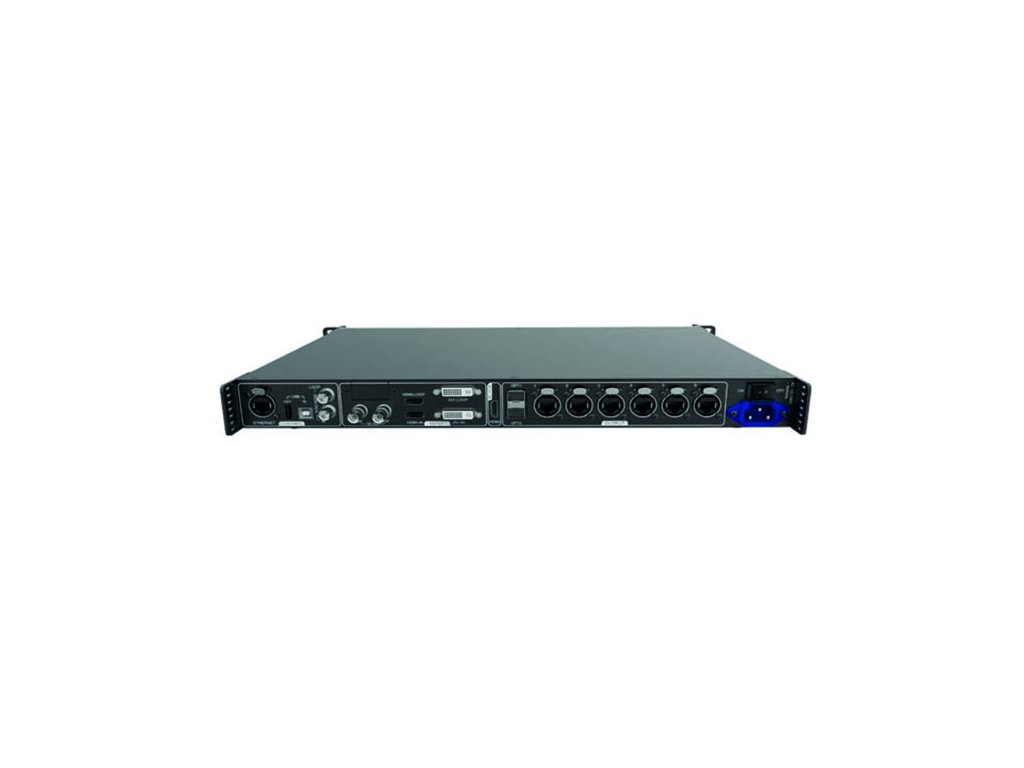

NOVASTAR MCTRL660 Pro

 Inputs:

• 1x HDMI (input/output):
  • 8Bit: 1920×1200@60Hz
  • 10/12Bit: 1920×1080@60Hz
    Supports high-quality video and audio with flexibility for different color depths and resolutions.
• 1x 3G-SDI (input/output):
  A professional standard for high-quality video signal transmission, ideal for live broadcasting and professional video production.
• 1x Single-Link DVI:
  Compatible with digital video output for connection to various display devices.

Outputs:

• 6x LED-Out (RJ45):
  RJ45 outputs for connecting LED displays and projection systems, allowing video signal expansion and synchronization across multiple screens.
• 2x 10G OPT-Out:
  Optical outputs for long-distance signal transmission with high bandwidth, ideal for large installations or broadcast applications.

Additional Features:

• Integrated Display:
  Enables easy monitoring and control of the output signal directly on the device.
• Low Latency:
  Latency of less than 1ms, crucial for live broadcasts and applications requiring an immediate response, such as gaming or live performances.
• Various Operating Modes:
  The device can function as a broadcast card or optical module, ensuring flexibility for different installations.
• Cascading via USB:
  Allows connection and synchronization of multiple units for large and complex systems.
• Control via USB or LAN (including Web Interface):
  Enables convenient remote device management and configuration via USB or network connection, including a web interface for easy control.
• 8/10/12-bit Color Depth:
  Supports different color depths, ensuring high-quality display with extended options for color and contrast adjustments.
• GENLOCK In/Loop:
  The GENLOCK function for synchronizing video signals across multiple devices, essential for professional broadcasting and film production, ensuring perfect signal alignment.

Advantages:

• Professional Performance:
  High-quality image processing, low latency, and extensive support for various video formats and connections.
• Flexibility & Expandability:
  Supports cascading, multiple control methods (USB, LAN), and compatibility with a wide range of devices.
• Ideal for Live Broadcasting & Large Installations:
  With low latency and multi-unit synchronization, the MCTRL660 Pro is ideal for professional applications, such as live broadcasts, concerts, large LED displays, and other dynamic installations.
