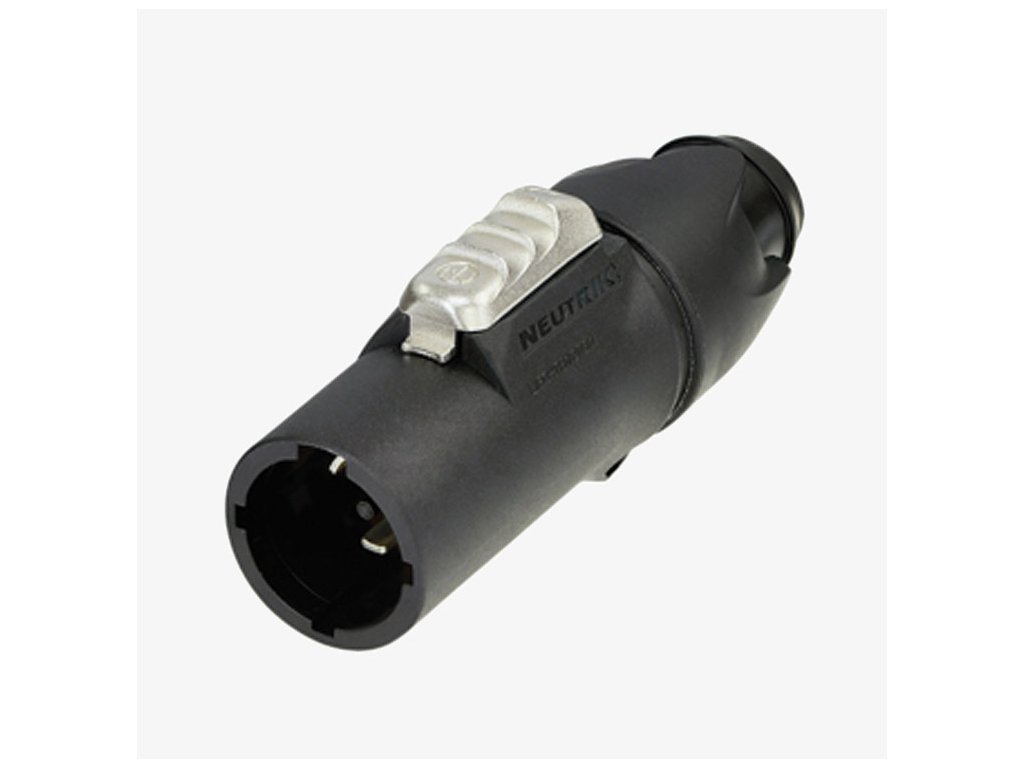

NEUTRIK NAC3MX-W-TOP POWERCON TRUE1
NEUTRIK NAC3MX-W-TOP POWERCON TRUE1
Cable connectors: Screw terminals, a large latch release button, and Neutrik’s proven cable strain relief system.
Cable compatibility: Supports cables with a diameter of 6–12 mm and conductors of 1.0–2.5 mm².
Power sockets: NAC3MPX-TOP has a standard "D" housing, while NAC3FPX-TOP has a larger housing.
Terminals: 6.3 mm spade terminals for input, output with spade or screw terminals.
-WOT variants: Without terminal barriers, for use with larger insulated sockets with spade terminals.
Powercon True1 TOP is a lockable 16 A mains connector for outdoor applications. It replaces appliance couplers wherever a highly robust solution with a locking device is needed to ensure a secure power connection. The connector also features breaking capacity (CBC), allowing it to be connected or disconnected under load.
Additional parameters
| Category: | Connectors |
|---|---|
| Odpor kontaktů: | ≤ 2 mΩ |
| Dielektrická pevnost: | 4 kVdc / 2,8 kVac |
| Izolační odpor: | > 0,1 GΩ |
| Počet elektrických kontaktů: | 2 + PE |
| Jmenovité napětí Evropa EN 60320-1: | 16 A 250 V AC |
| O.D. kabelu: | 6 - 12 mm (0,23 - 0,47 palce) |
| Životnost: | > 5000 cyklů spojení |
| Velikost vodičů: | 1,0 - 2,5 mm² Velikost vodičů 12 AWG |
