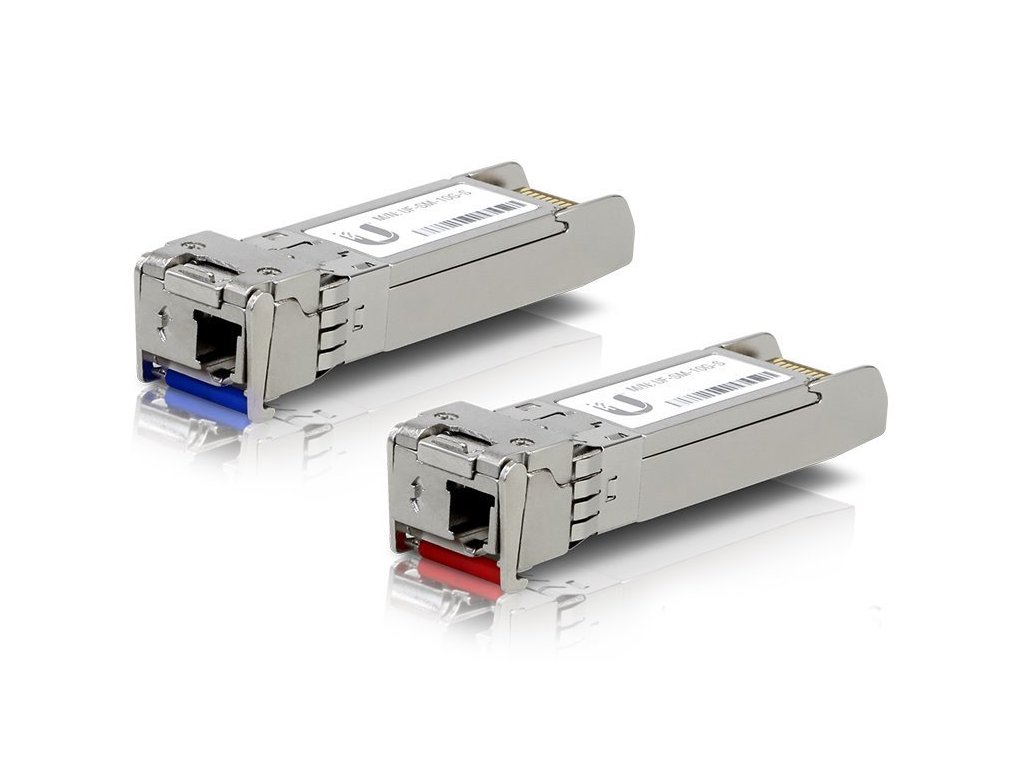

Single-Mode Optical module SFP+,10 Gbit, BiDi

Single-Mode Optical module SFP+, 10 Gbit, BiDi

This bidirectional BiDi optical module for Single-Mode fibers is designed for data transmission speeds of up to 10 Gbit/s. It uses BiDi technology, enabling bidirectional transmission through a single optical fiber, increasing efficiency and reducing cabling needs.

Supported media:

Designed for Single-Mode fibers, which are ideal for long-distance transmission with low signal attenuation.

Connector type:

Equipped with a standard LC connector, commonly used for high-speed optical connections.

BiDi (Bidirectional Technology):

BiDi technology allows data transmission in both directions using only one fiber and different wavelengths, reducing cabling costs while ensuring efficient fiber utilization.

Wavelengths:

TX (Transmitter) Wavelengths:

• Blue: 1310 nm
• Yellow: 1550 nm

RX (Receiver) Wavelengths:

• Blue: 1550 nm
• Yellow: 1310 nm

This module uses different wavelengths for transmission and reception, enabling efficient bidirectional communication over a single fiber.

Data transmission speed:

Supports 10 Gbit/s, ideal for high-speed applications such as data centers, high-speed internet, or inter-building network connections.

Maximum power consumption:

1.5 W (typical), ensuring efficiency while maintaining high performance.

Range:

Supports signal transmission up to 80 km (depending on fiber quality and conditions), making it suitable for telecommunications and internet networks.

Operating temperature:

Works in a wide temperature range of -40°C to +85°C (-40°F to 185°F), allowing use in harsh environments, including outdoor installations and industrial applications.
