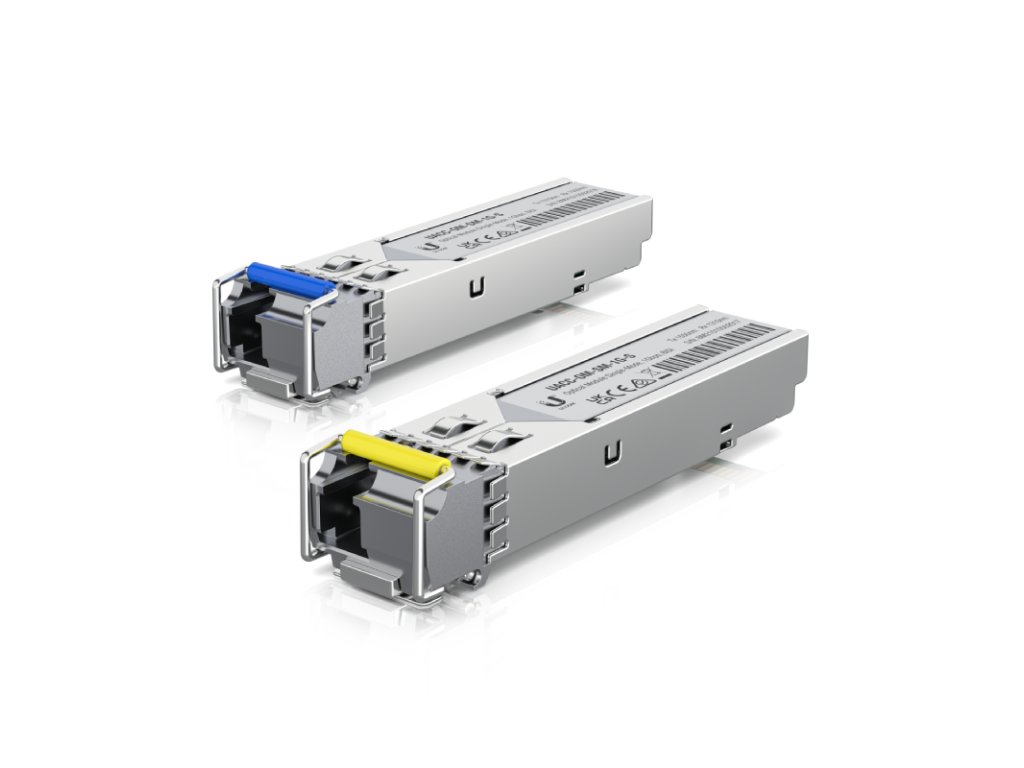

Single-Mode Optical Module SFP+, 1Gbit, BiDi

Bidirectional Single-Mode Optical Module (speed up to 1.25 Gbps)

Supported media:

This module is designed for use with Single-Mode fibers, enabling long-distance transmission with low attenuation.

Connector type:

The module uses a standard LC connector, which is compact and commonly used for high-speed optical connections.

BiDi (Bidirectional Technology):

BiDi technology allows data transmission in both directions using only one fiber, reducing cabling costs while ensuring efficient fiber utilization.

Wavelengths:

TX (Transmitter) Wavelengths:

• Blue: 1310 nm
• Yellow: 1550 nm

RX (Receiver) Wavelengths:

• Blue: 1550 nm
• Yellow: 1310 nm

This module uses different wavelengths for transmission and reception, enabling efficient bidirectional communication over a single fiber.

Data transmission speed:
The module supports 1.25 Gbps, making it suitable for various applications, including data center or commercial network communication.

Maximum power consumption:

With low power consumption of only 0.66 W, this module is energy-efficient and environmentally friendly.

Range:

Up to 3 km, making it ideal for long-distance signal transmission in applications such as building interconnections or large campuses.

Operating temperature:

The module operates in a range of 0 to 70°C (32 to 158°F), allowing deployment in various environments, from standard office spaces to industrial conditions.

Advantages:

• Efficiency: Reduced need for optical fibers thanks to BiDi technology.
• High data transmission speed up to 1.25 Gbps, suitable for most industrial applications.
• Low power consumption, contributing to lower operational costs.
• Long range up to 3 km with Single-Mode optics.
• Reliable performance across a wide range of operating temperatures.
