VX 1000

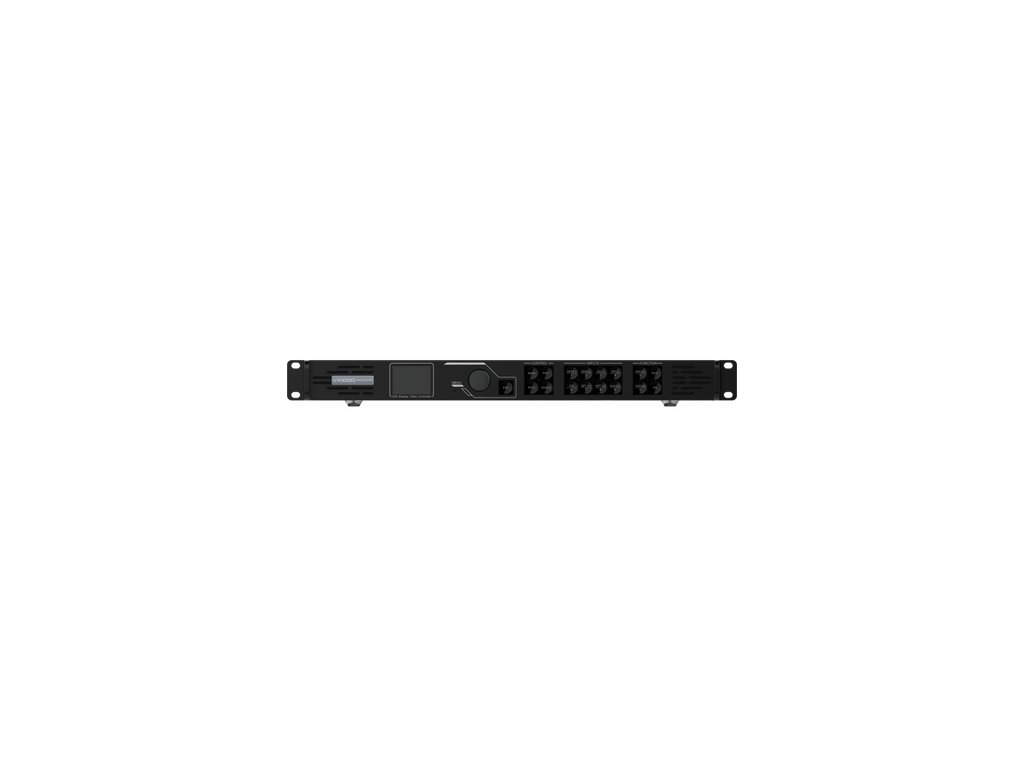

 NOVASTAR VX 1000

Integrated Controller: The VX1000 combines video processing and control in one device.

Performance: Supports up to 6.5 million pixels, with a maximum output width of 10,240 px and a height of 8,192 px.

Ports and Modes: Features 10 Ethernet ports and supports multiple modes, including video controller, fiber optic converter, and bypass.

High Resolution: Capable of processing video up to 4K × 1K @ 60 Hz, with three customizable 4K layers.

Usage: Ideal for ultra-wide and ultra-high LED screens.

Input Connectors
1x HDMI 1.4 (IN & LOOP)
1x HDMI 1.4
1x DVI (IN & LOOP)
1x DVI
1x 3G-SDI (IN & LOOP)
1x Fiber Optic Port 10G (OPT1)

Output Connectors
10x Gigabit Ethernet port
One controller supports up to 6.5 million pixels with max width: 10,240 px and max height: 8,192 px.
2x Optical outputs
OPT 1 mirrors output across 10 Ethernet ports.
OPT 2 provides backup or mirrored output across 10 Ethernet ports.
1x HDMI 1.3

For monitoring or video output

OPT 1 Auto-Adaptation for Video Input or Sending Card Output
Thanks to its self-adaptive design, OPT 1
can function as either an input or output connector,
depending on the connected device.
Audio input and output

 Audio Input Complemented by an HDMI source Input
Audio output through a multifunction card
Supports output volume adjustment

Low Latency
Reduces delay from input to receiving
card to 20 lines when low latency mode
and bypass mode are activated.

3x Layers
Adjustable layer size and position
